From Axis

These wider chord wings are the perfect choice for beginner wingers, windsurfers and SUP foilers. The design emphasis is on easy lift, stability and predictable turning. The 440/90, paired with our BSC 1060 front wing, is the popular choice for learning to wing foil.

Package Includes

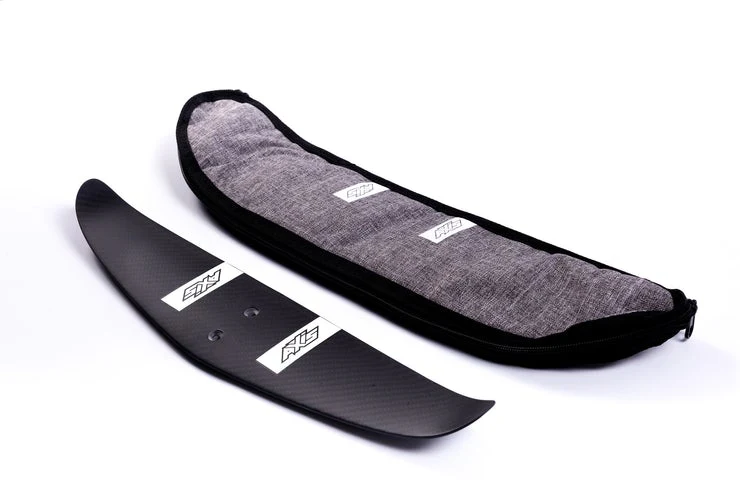

• Wing
• Wing Cover

• Assembly Hardware Sold Separately

500 Freeride Carbon Rear Wing Technical Data

• WINGSPAN: 500 mm / 19.69 in
• CHORD: 90 mm / 3.54 in
• ASPECT RATIO: 7.3
• ACTUAL AREA : 360.77 cm² / 55.92 IN²
• PROJECTED AREA: 342.55 cm² / 214.35 IN²
• VOLUME: 130.8 cm³ / 8 IN³

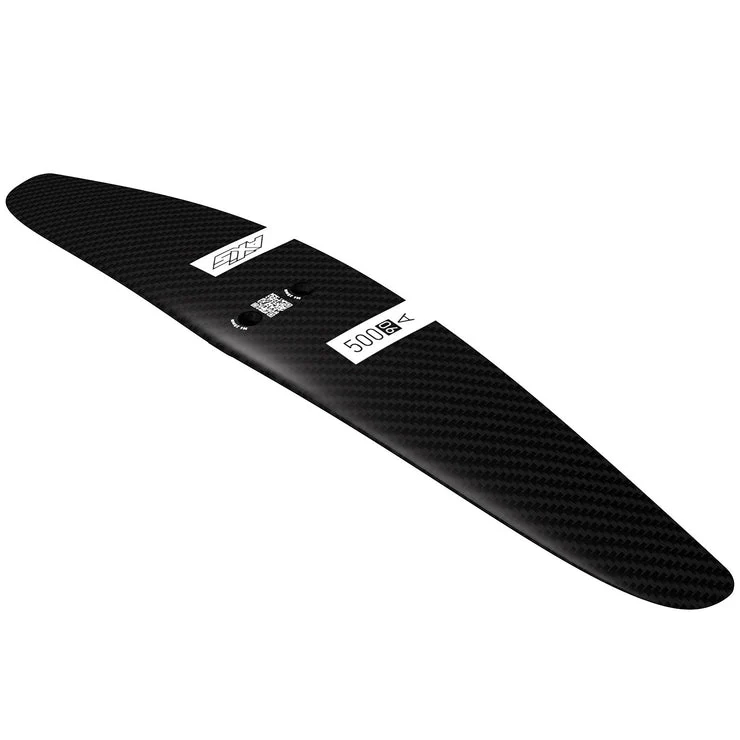

500 Freeride Anhedral Carbon Rear Wing Technical Data (500A/90)

The AXIS 500 Carbon Anhedral Rear Wing, is the ideal rear wing for Wind Foiling. Combined with either the 1020, 1000, 920, 900 or 820, the 500 Anhedral gives you a balanced and stable ride while wind foiling.

• WINGSPAN: 500 mm / 19.69 in
• CHORD: 90 mm / 3.54 in
• ASPECT RATIO: 7.17
• ACTUAL AREA : 362.33 cm² / 56.16 IN²
• PROJECTED AREA: 348.72 cm² / 54.05 IN²
• VOLUME: 223.43 cm³ / 13.63 IN³

440 Freeride Carbon Rear Wing Technical Data

• WINGSPAN: 440 mm / 17.32 in
• CHORD: 90 mm / 3.54 in
• ASPECT RATIO: 6.37
• ACTUAL AREA : 318.94 cm² / 49.44 IN²
• PROJECTED AREA: 303.97 cm² / 47.12 IN²
• VOLUME: 192.81 cm³ / 4.97 IN³

400 Freeride Carbon Rear Wing Technical Data

• WINGSPAN: 400 mm / 15.75 in
• CHORD: 90 mm / 3.54 in
• ASPECT RATIO: 5.79
• ACTUAL AREA : 291.18 cm² / 45.13 IN²
• PROJECTED AREA: 276.54 cm² / 42.86 IN²
• VOLUME: 175.35 cm³ / 10.70 IN³
